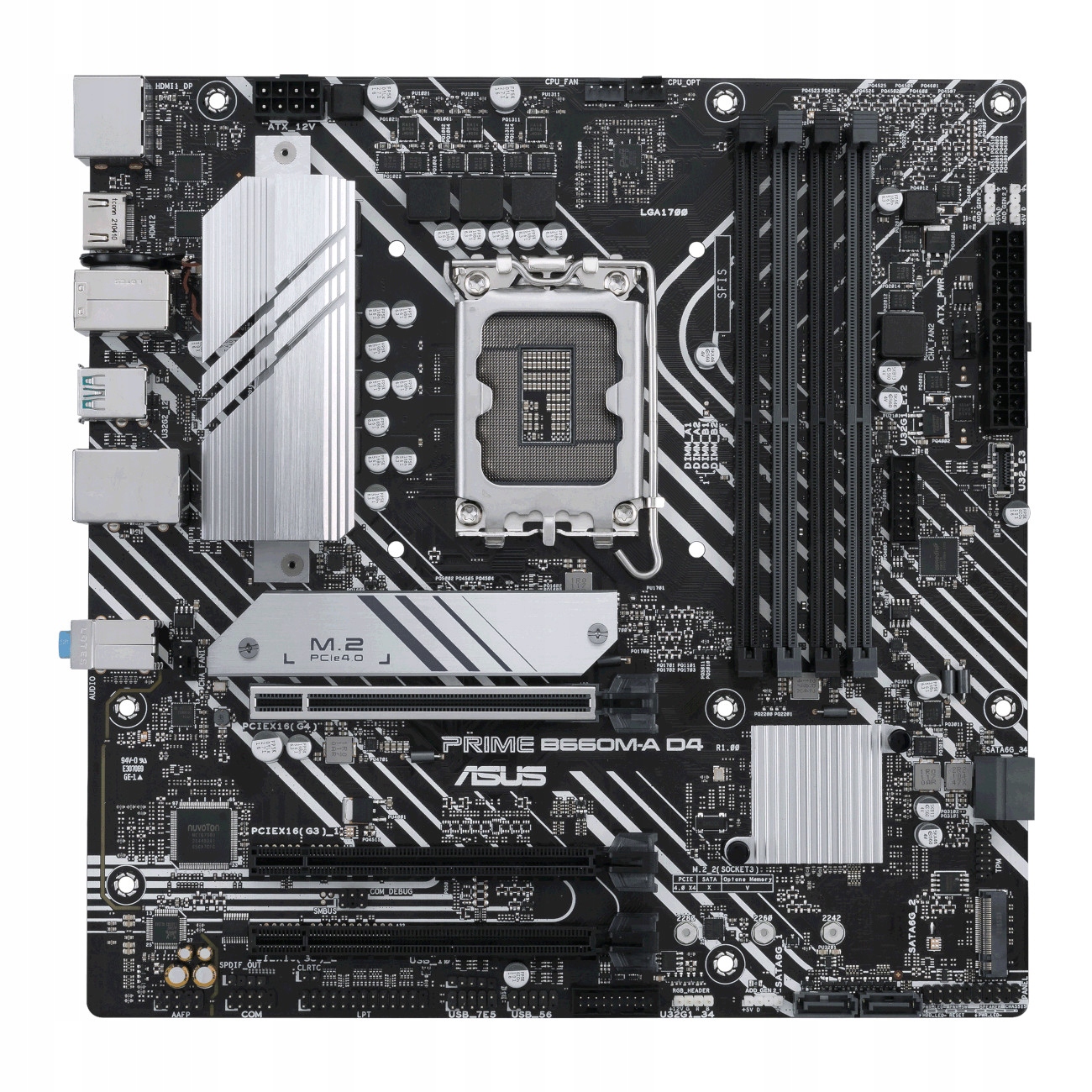

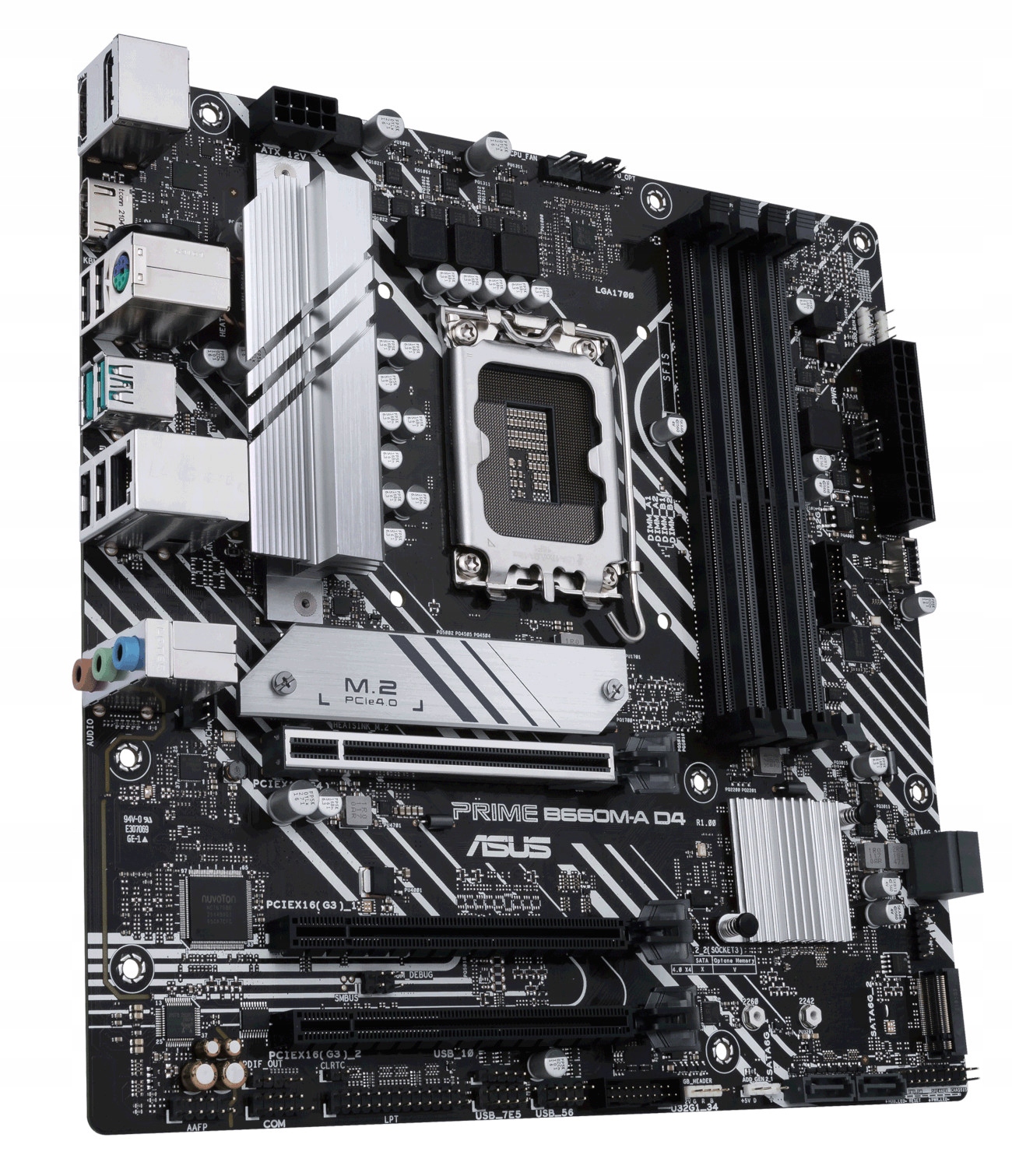

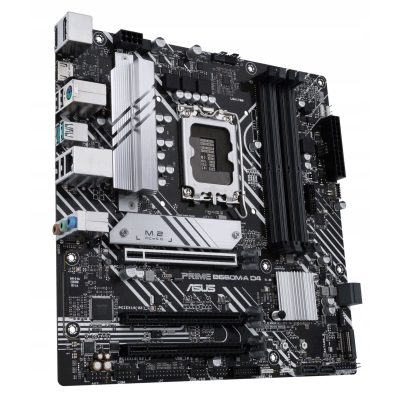

SPECYFIKACJA
Procesor: Intel® Socket LGA1700 for 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors, Intel® Socket LGA1700 for 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors, Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0
Chipset: Intel® B660 Chipset
Pamięć: 4 x DIMM, Max. 128GB, DDR4, 5333(OC) / 5000(OC) / 4800(OC) / 4600(OC) / 4400(OC) / 4266(OC) / 4000(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3400(OC) / 3333(OC) / 3200 / 3000 / 2933 / 2800 / 2666 / 2400 / 2133 Non-ECC, Un-buffered Memory
Grafika: 1 x DisplayPort, 2 x HDMI® ports
Obsługa Multi-GPU: Brak
Gniazda rozszerzeń
Intel® 12th Gen Processors
- 1 x PCIe 4.0/3.0 x16 slot
Intel® B660 Chipset
- 1 x PCIe 3.0 x16 slot (supports x4 mode)
- 1 x PCIe 3.0 x16 slot (supports x1 mode)
Magazyn danych
2 x M.2 slots and 4x SATA 6Gb/s ports
Intel® 12th Gen Processors
- M.2_1 slot (Key M), type 2242/2260/2280
Intel® 12th Gen processors support PCIe 4.0 x4 mode.
Intel® B660 Chipset
- M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)*
- 4 x SATA 6Gb/s ports
Sieć LAN
Sieć bezprzewodowa: Brak
Bluetooth: Brak
Porty USB
USB z Tyłu (Łącznie 6 portów)
- 2 x USB 3.2 Gen 2 ports (2 x Type-A )
- 4 x USB 2.0 ports (4 x Type-A)
USB z Przodu (Łącznie 10 portów)
- 2 x USB 3.2 Gen 1 headers support additional 4 USB 3.2 Gen 1 ports
- 1 x USB 3.2 Gen 1 connector (supports USB Type-C®)
- 2 x USB 2.0 headers support additional 4 USB 2.0 ports
- 1 x USB 2.0 header support 1 USB 2.0 port
Dźwięk
ALC897
- Realtek 7.1 Surround Sound High Definition Audio CODEC*
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- Supports up to 24-Bit/192 kHz playback
Audio Features
- Audio Shielding
- Premium audio capacitors
- Dedicated audio PCB layers

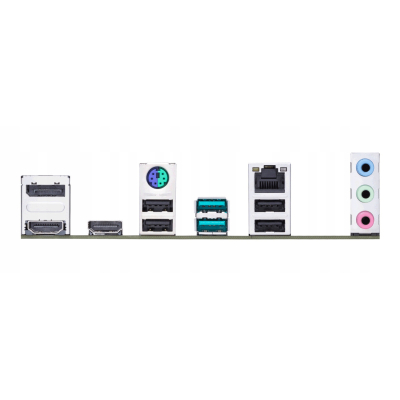

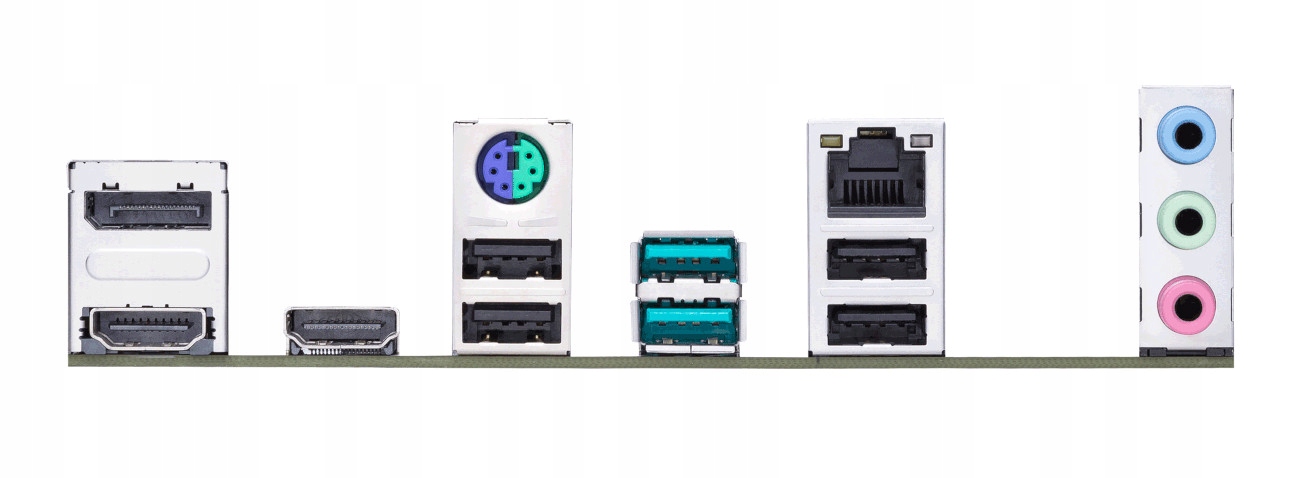

Tylne porty wejścia/wyjścia
- 2 x USB 3.2 Gen 2 ports (2 x Type-A )
- 4 x USB 2.0 ports (4 x Type-A)
- 1 x DisplayPort
- 2 x HDMI® ports
- 1 x Intel® 1Gb Ethernet port
- 3 x Audio jacks
- 1 x PS/2 Keyboard/Mouse combo port
Wewnętrzne porty wejścia/wyjścia
Związane z wiatrakami i chłodzeniem
- 1 x 4-pin CPU Fan header
- 1 x 4-pin CPU OPT Fan header
- 2 x 4-pin Chassis Fan headers
Związane z zasilaniem
- 1 x 24-pin Main Power connector
- 1 x 8-pin +12V Power connector
Związane z magazynowaniem
- 2 x M.2 slots (Key M)
- 4 x SATA 6Gb/s ports
USB
- 2 x USB 3.2 Gen 1 headers support additional 4 USB 3.2 Gen 1 ports
- 1 x USB 3.2 Gen 1 connector (supports USB Type-C®)
- 2 x USB 2.0 headers support additional 4 USB 2.0 ports
- 1 x USB 2.0 header supports 1 USB 2.0 port
Różne
- 3 x AURA Addressable Gen 2 headers
- 1 x AURA RGB header
- 1 x Clear CMOS header
- 1 x COM Port header
- 1 x Front Panel Audio header (AAFP)
- 1 x LPT header
- 1 x S/PDIF Out header
- 1 x SPI TPM header (14-1pin)
- 1 x 20-3 pin System Panel header with Chassis intrude function
Funkcje specjalne
ASUS 5X PROTECTION III
- DIGI+ VRM
- Enhanced DRAM Overcurrent Protection
- ESD Guards
- LANGuard
- Overvoltage Protection
- SafeSlot Core+
- Stainless-Steel Back I/O
ASUS Q-Design
ASUS Thermal Solution
- M.2 heatsink
- VRM heatsink design
ASUS EZ DIY
AURA Sync
- AURA RGB header
- Addressable Gen 2 RGB headers
Funkcje oprogramowania
ASUS Exclusive Software
- Armoury Crate
- AURA Creator
- AURA Sync
- Fan Xpert 2+
- AI Suite 3
- - Performance And Power Saving Utility
- TurboV EVO
- EPU
- Digi+ VRM
- ASUS CPU-Z
- Norton Anti-virus software (Free Trial version)
- WinRAR
UEFI BIOS
- ASUS EZ DIY
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS UEFI BIOS EZ Mode
BIOS
- 128 Mb Flash ROM, UEFI AMI BIOS
- Zarządzanie
- WOL by PME, PXE

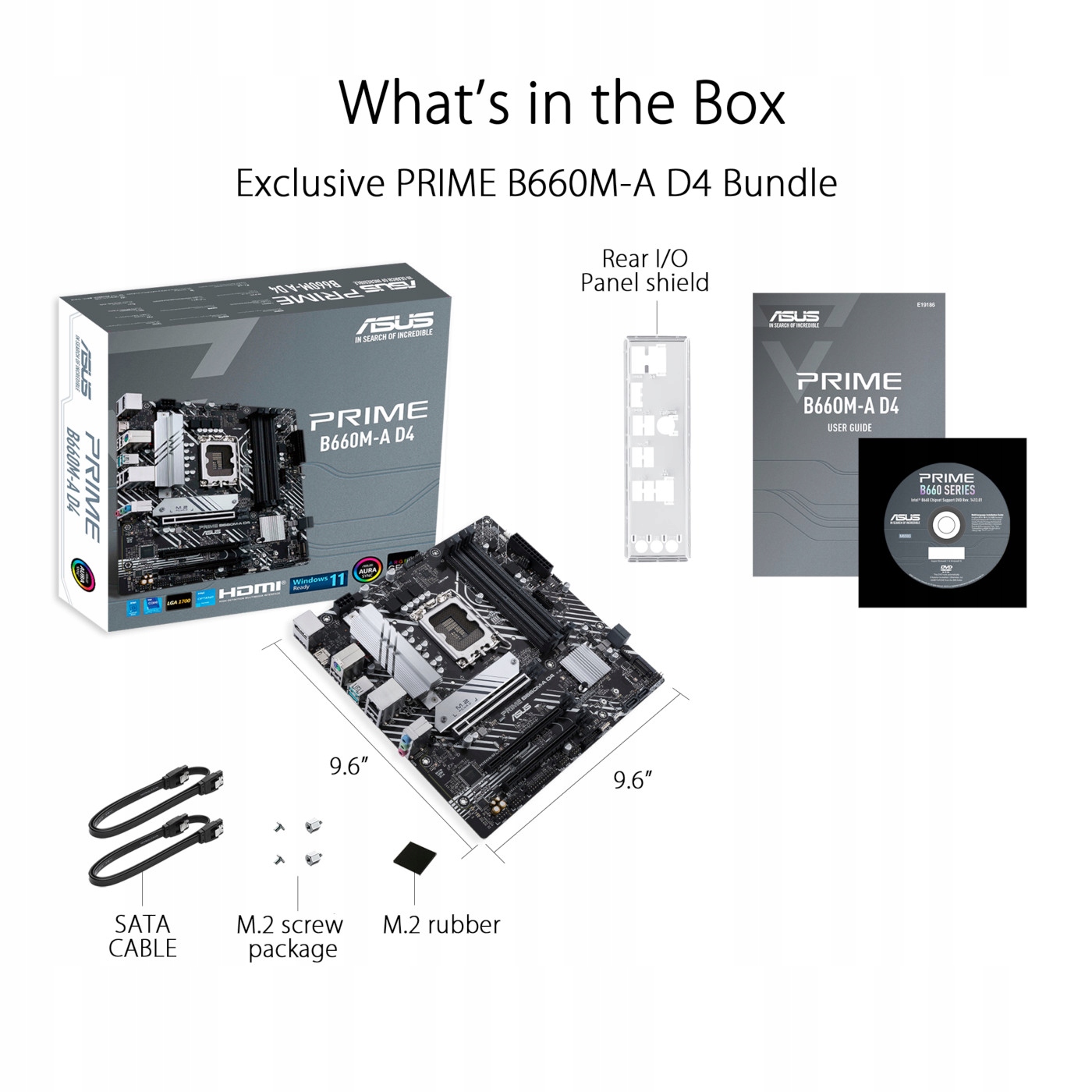

Akcesoria
Kable
Różne
- 1 x I/O Shield
- 1 x M.2 Rubber Package
- 1 x M.2 SSD screw package
Media instalacyjne
Dokumentacja
Wspierane systemy operacyjne
- Windows® 11 64-bit,
- Windows® 10 64-bit
Typ obudowy
