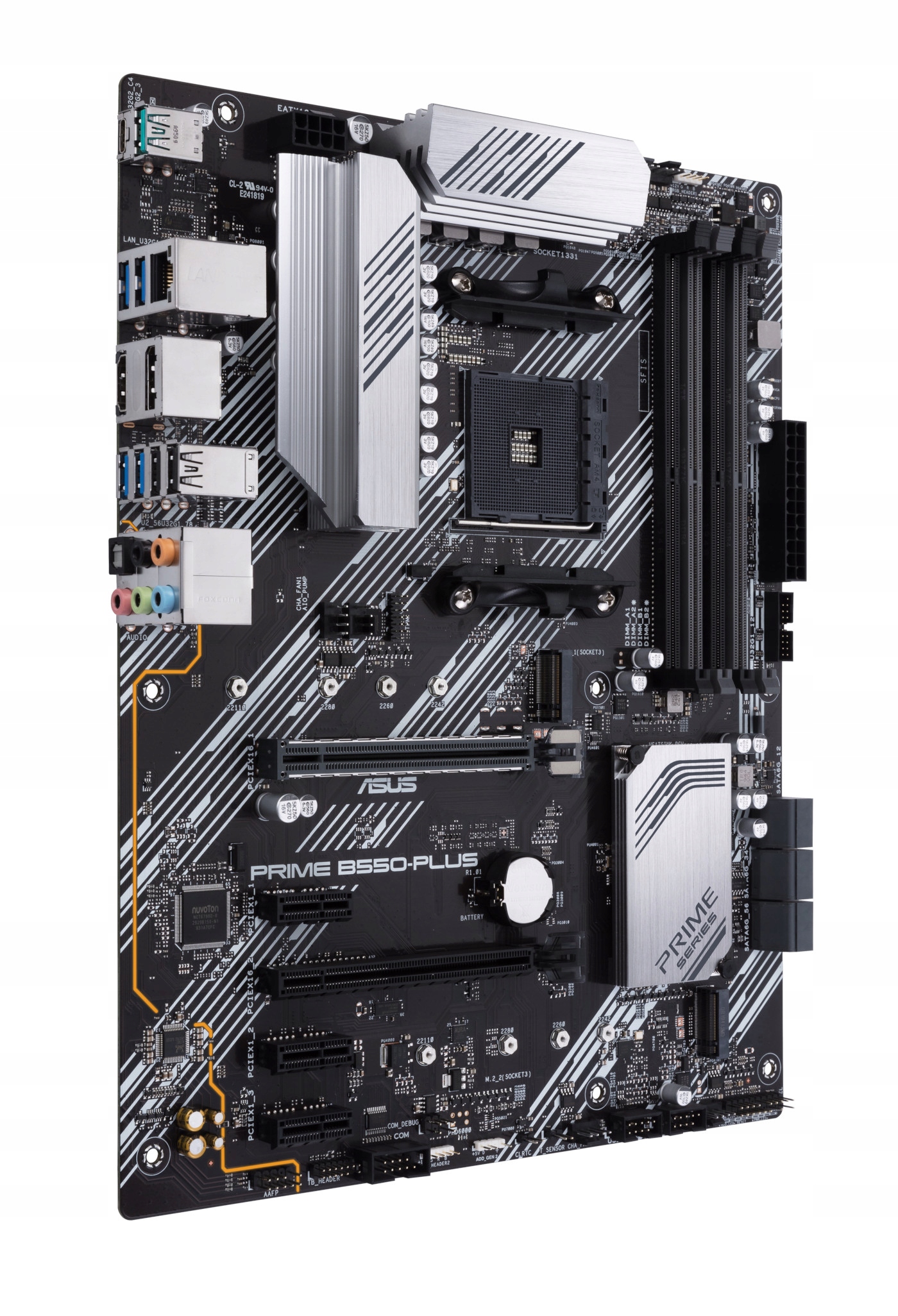

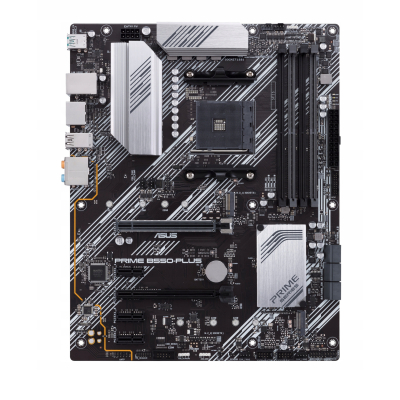

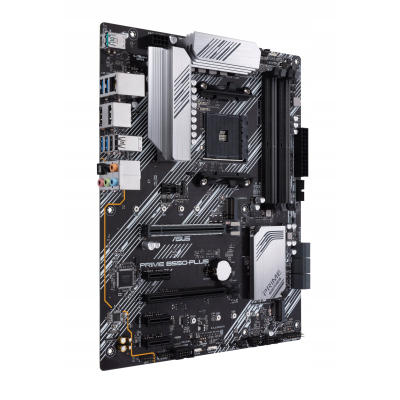

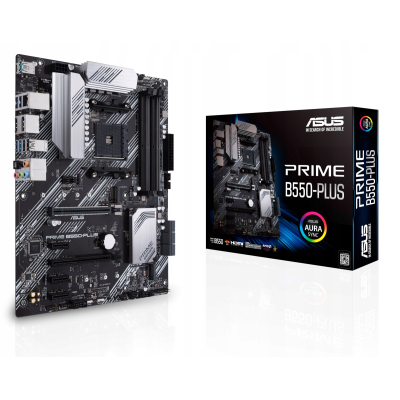

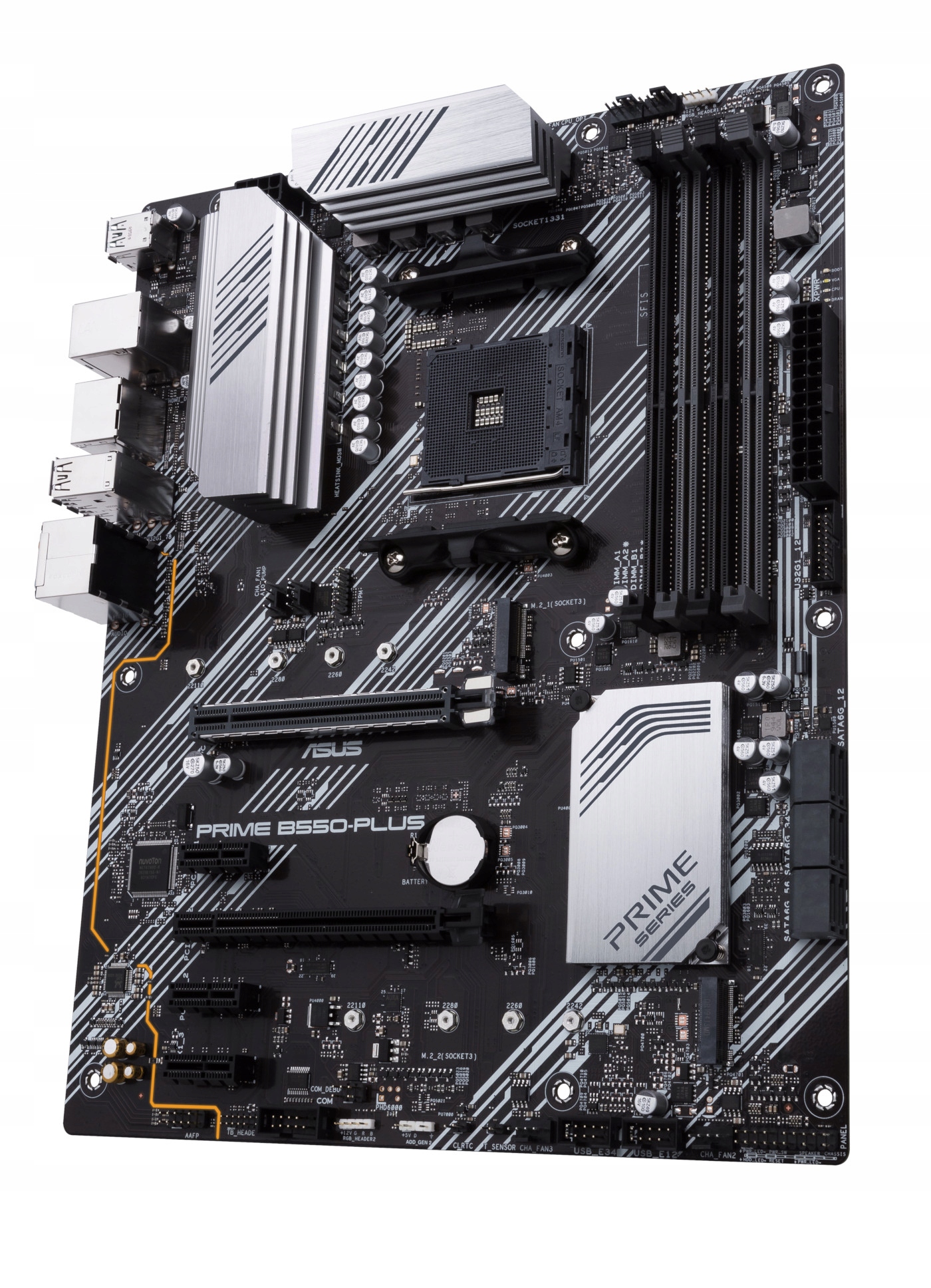

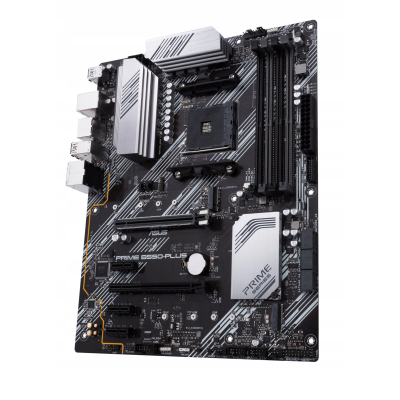

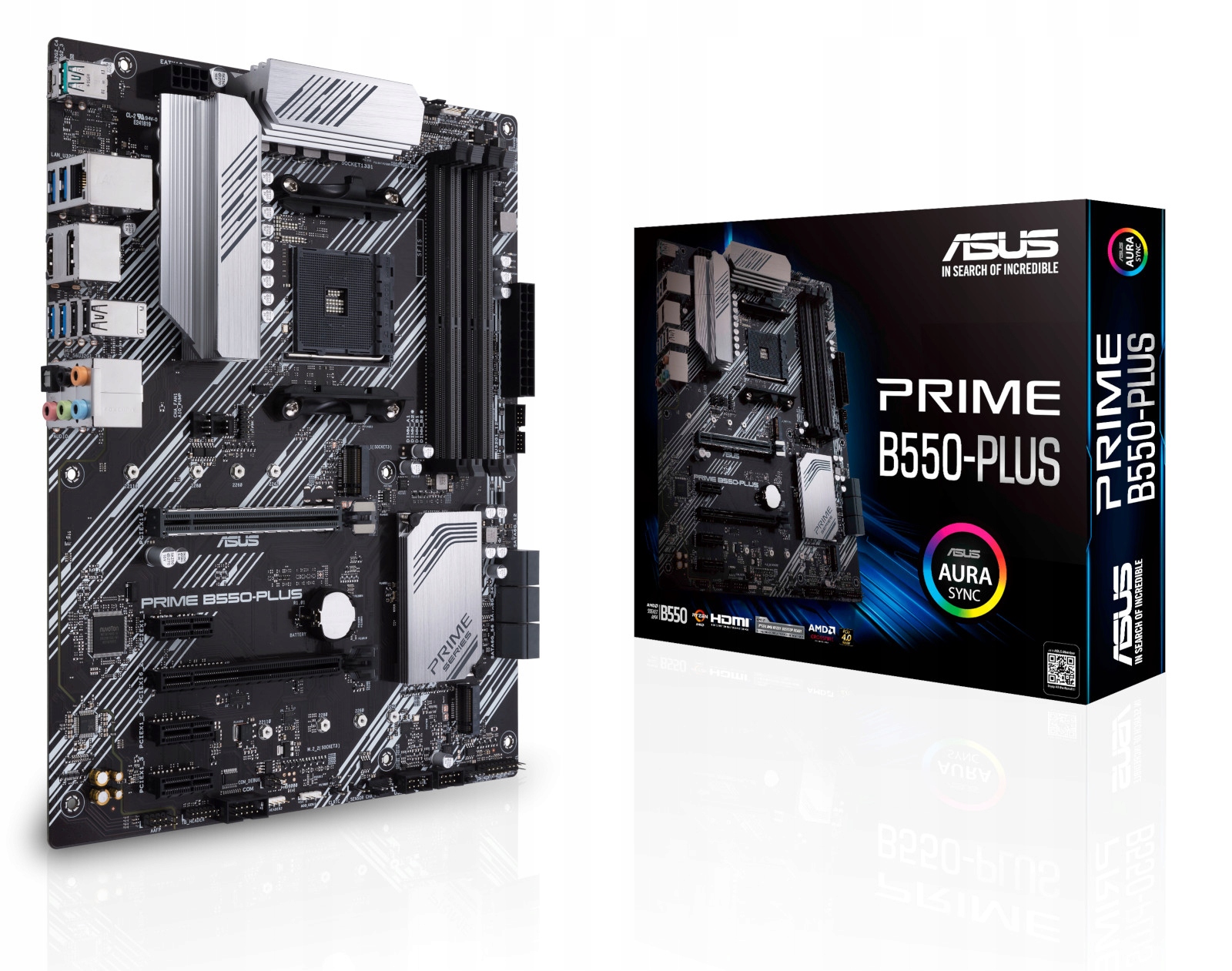

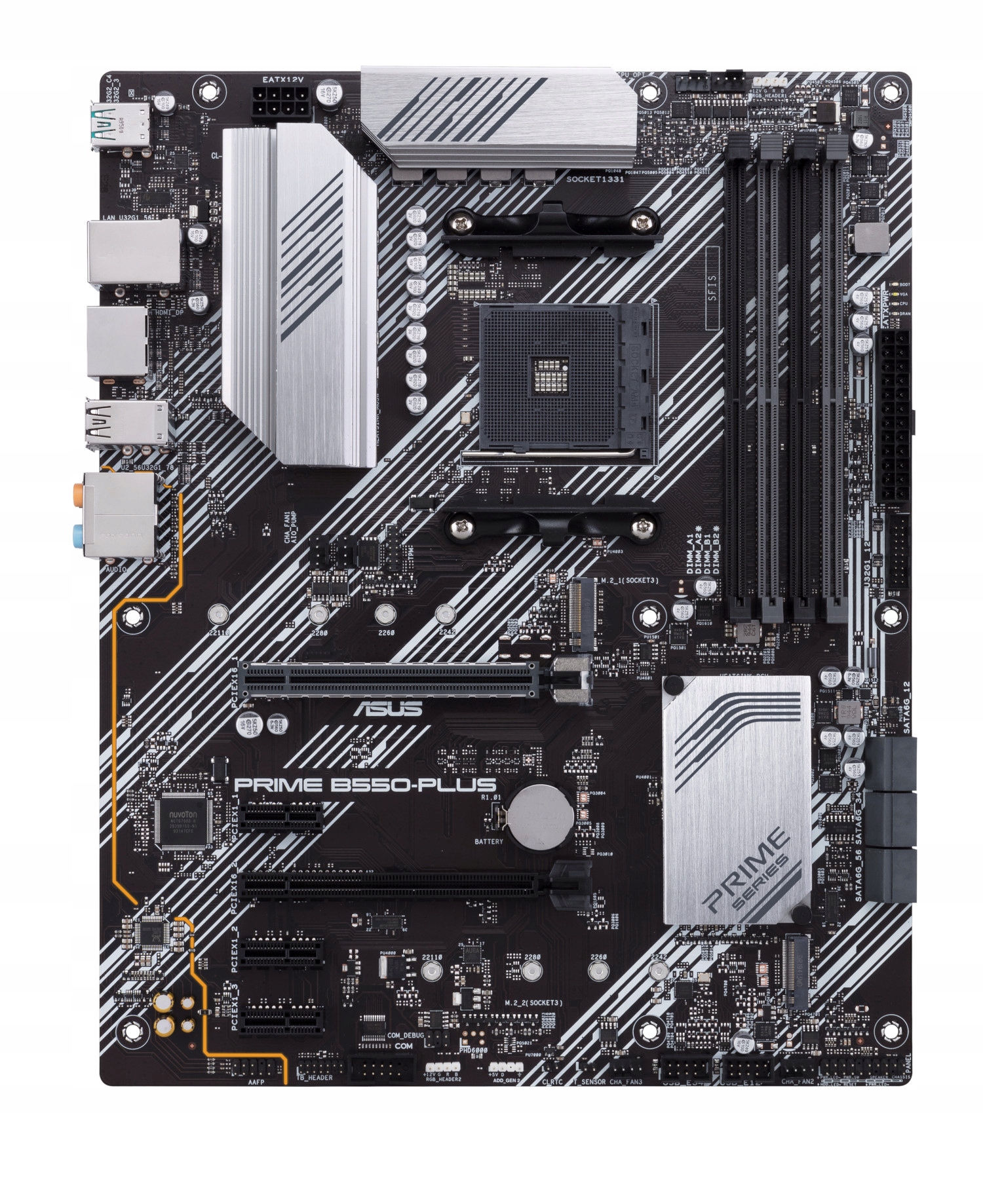

Płyta główna ASUS PRIME B550-PLUS z podwójnym slotem M.2, PCI 4.0, 1GB Ethernet, DisplayPort/HDMI, Sata 6Gbps, USB 3.2 TypC i wsparciem technologi ASUS Aura Sync RGB

Kod produktu: PRIME B550-PLUS

GALERIA

SPECYFIKACJA

Procesor

• AMD AM4 Socket for 3rd Gen AMD Ryzen™3rd Gen AMD Ryzen™ with Radeon™ Vega Graphics/Athlon™ with Radeon™ Vega Graphics Processors
• * Lista obsługiwanych procesorów dostępna na stronie producenta

Chipset

• AMD B550

Pamięć

• 4 x DIMM, Max. 128GB, DDR4 4600(O.C) / 4400(O.C) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C.) / 3333(O.C.) / 3200 / 3000 / 2800 / 2666 / 2400 / 2133 MHz ECC and non-ECC, Un-buffered Memory *
• Next Generation AMD Ryzen PRO Processors
• 4 x DIMM, Max. 128GB, DDR4 4800(O.C.) / 4600(O.C) / 4466(O.C.) / 4400(O.C) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3600(O.C.) / 3466(O.C.) / 3200 / 3000 / 2800 / 2666 / 2400 / 2133 MHz ECC and non-ECC, Un-buffered Memory
• Dual Channel Memory Architecture
• * Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).

Grafika

• 1 x DisplayPort 1.2 *
• 1 x HDMI 2.1(4K@60HZ)
• *Graphics specifications may vary between CPU types.

Obsługa Multi-GPU

• Supports AMD 2-Way CrossFireX Technology

Gniazda rozszerzeń

• 3rd Gen AMD Ryzen™ Processors
• 1 x PCIe 4.0 x16 (x16 mode)
• AMD B550 Chipset
• 1 x PCIe 3.0 x16 (x4 mode)
• 3 x PCIe 3.0 x1 *1
• * Support PCIe bifurcation for RAID on CPU function.

Magazyn danych

• Total supports 2 x M.2 slots and 6 x SATA 6Gb/s ports
• 3rd Gen AMD Ryzen™ Processors :
• 1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support(SATA & PCIe 4.0 x4 mode)
• AMD B550 Chipset :
• 1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode)*2
• 6 x SATA 6Gb/s port(s), *2
• Support Raid 0, 1, 10

Sieć LAN

• Realtek® RTL8111H
• ASUS LANGuard

Dźwięk

• Realtek ALC887 7.1-Channel High Definition Audio CODEC
• - Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking, up to 24-Bit/192kHz playback
• Audio Feature :
• - Optical S/PDIF out port(s) at back panel
• - LED-illuminated design
• - Audio Shielding
• - Dedicated audio PCB layers
• - Premium Japanese audio capacitors
• - Unique de-pop circuit

Porty USB

• Rear USB Port ( Total 8 )
• 2 x USB 3.2 Gen 2 port(s)(1 x Type-A +1 x USB Type-C®)
• 4 x USB 3.2 Gen 1 port(s)(4 x Type-A)
• 2 x USB 2.0 port(s)(2 x Type-A)
• Front USB Port ( Total 6 )
• 2 x USB 3.2 Gen 1 port(s)(2 x Type-A)
• 4 x USB 2.0 port(s)(4 x Type-A)

Funkcje specjalne

• ASUS Exclusive Software
• Armoury Crate
• - Aura Creator
• - Aura Sync
• AI Suite 3
• - Performance And Power Saving Utility
• TurboV EVO
• EPU
• Digi+ VRM
• Fan Xpert 4
• - EZ update
• ASUS CPU-Z
• AI Charger
• DAEMON Tools
• Norton Anti-virus software (Free Trial for 60 days)
• WinRAR
• UEFI BIOS
• ASUS EZ DIY
• - ASUS CrashFree BIOS 3
• - ASUS EZ Flash 3
• - ASUS UEFI BIOS EZ Mode

Funkcje specjalne ASUS

• ASUS 5X PROTECTION III
• - ASUS DIGI+ VRM
• - ASUS Enhanced DRAM Overcurrent Protection
• - ASUS ESD Guards
• - ASUS LANGuard
• - ASUS Overvoltage Protection
• - ASUS SafeSlot Core
• - ASUS Stainless-Steel Back I/O
• ASUS Q-Design
• - ASUS Q-DIMM
• - ASUS Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
• - ASUS Q-Slot
• ASUS Thermal Solution
• - Aluminum heatsink design
• ASUS EZ DIY
• - SafeSlot
• AURA Sync
• - Standard RGB headers
• - Addressable Gen 2 RGB header

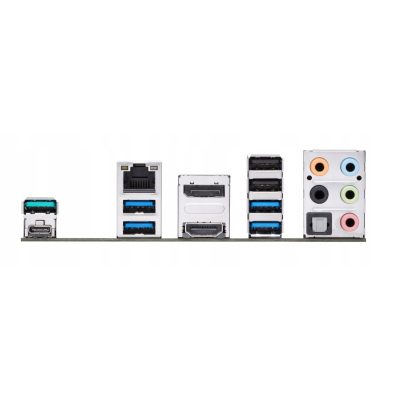

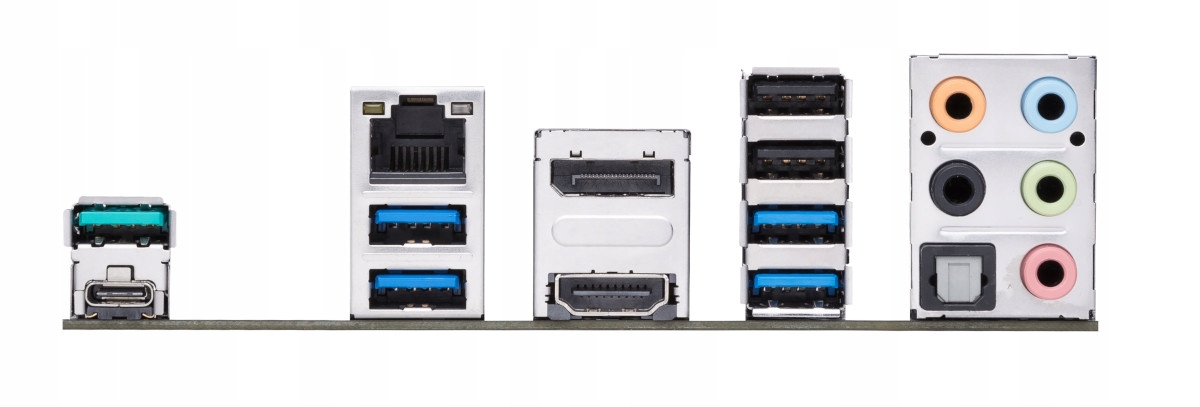

Tylne porty wejścia/wyjścia

• 1 x DisplayPort
• 1 x HDMI
• 1 x LAN (RJ45) port(s)
• 2 x USB 3.2 Gen 2 (teal blue) (1 x Type-A+1 x USB Type-C®)
• 4 x USB 3.2 Gen 1 (blue) Type-A
• 2 x USB 2.0
• 1 x Optical S/PDIF out
• 5 x Audio jack(s)

Wewnętrzne porty wejścia/wyjścia

• 1 x CPU Fan connector(s)
• 1 x CPU OPT Fan connector(s)
• 3 x Chassis Fan connector(s)
• 1 x AIO_PUMP connector
• 2 x Aura RGB Strip Headers
• 1 x Addressable Gen 2 header(s)
• 1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s)
• 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
• 1 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support(SATA & PCIe 4.0 x4 mode)
• 1 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode)
• 1 x SPI TPM header
• 6 x SATA 6Gb/s connector(s)
• 1 x Thunderbolt header(s)
• 1 x 24-pin EATX Power connector(s)
• 1 x 8-pin EATX 12V Power connectors
• 1 x Front panel audio connector(s) (AAFP)
• 1 x Thermal sensor connector(s)
• 1 x Clear CMOS jumper(s)
• 1 x System panel connector
• 1 x COM port header

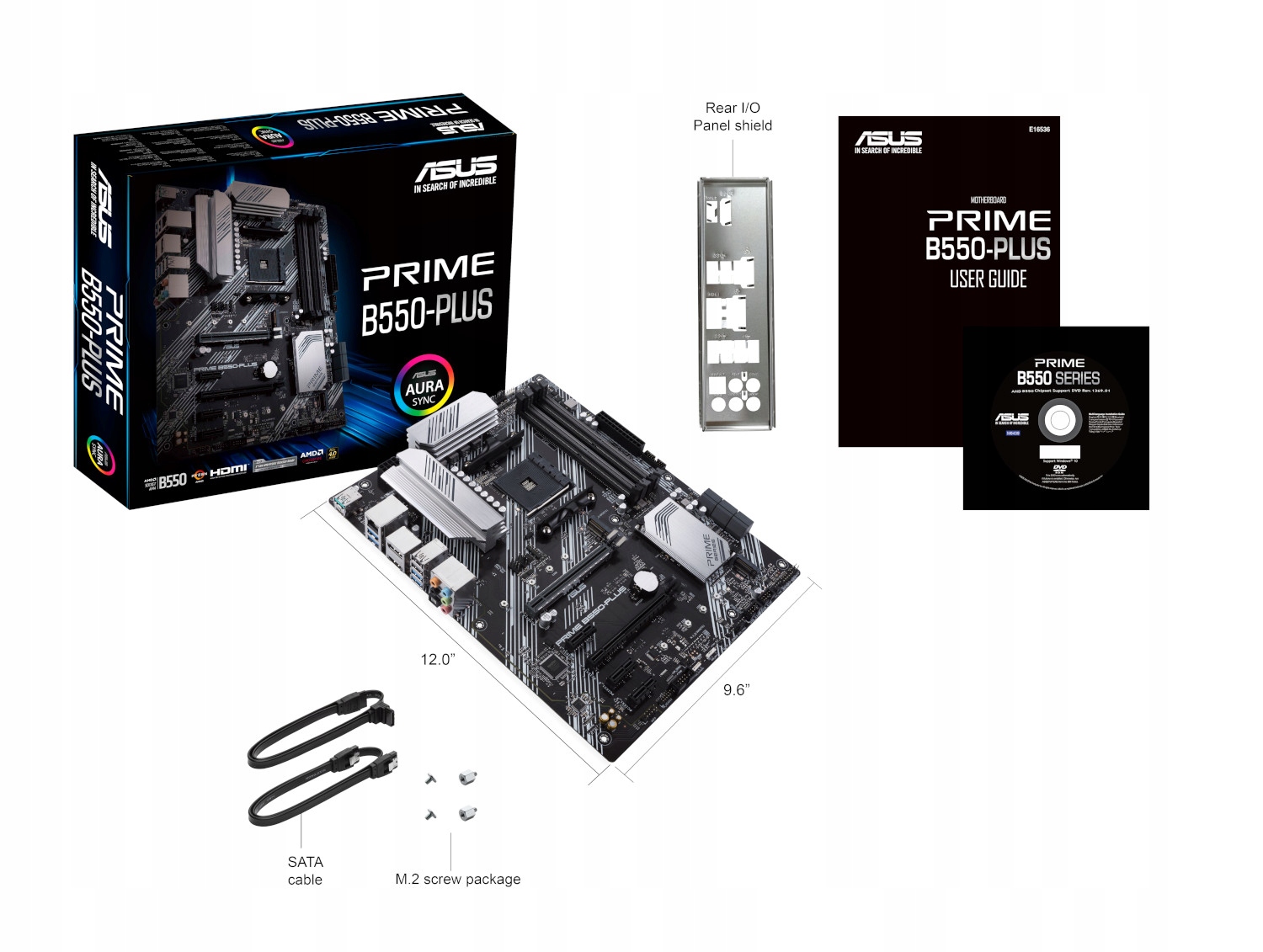

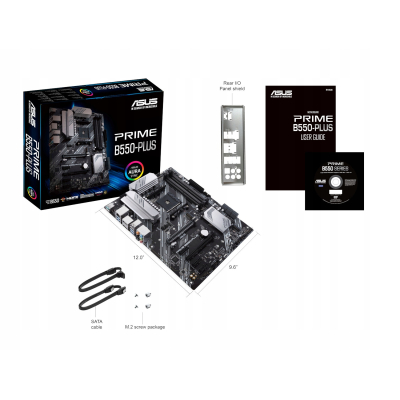

Akcesoria

• User's manual
• I/O Shield
• 2 x SATA 6Gb/s cable(s)
• 1 x Supporting DVD
• 1 x M.2 SSD screw package(s)

BIOS

• 256 Mb Flash ROM, UEFI AMI BIOS

Zarządzanie

• WOL by PME, PXE

System operacyjny

• wymagany Windows® 10 64-bit

Typ obudowy

• Obudowa ATX
• 12.0 cali x 9.6 cali ( 30.5 cm x 24.4 cm )

Uwaga

• *1 PCIE 3.0 X16_2 runs x2 mode when PCIEX1_2 or PCIEX1_3 slots is populated.
• *2 M2_2 shares bandwidth with SATA6G_56. When M.2_2 is populated, SATA6G_56 will be disabled.
