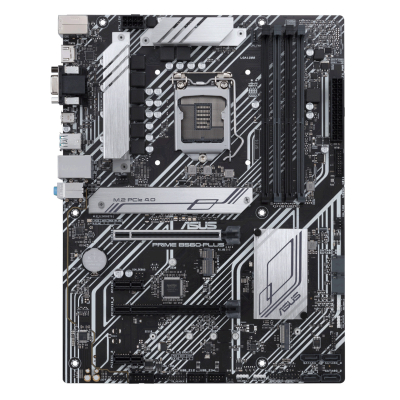

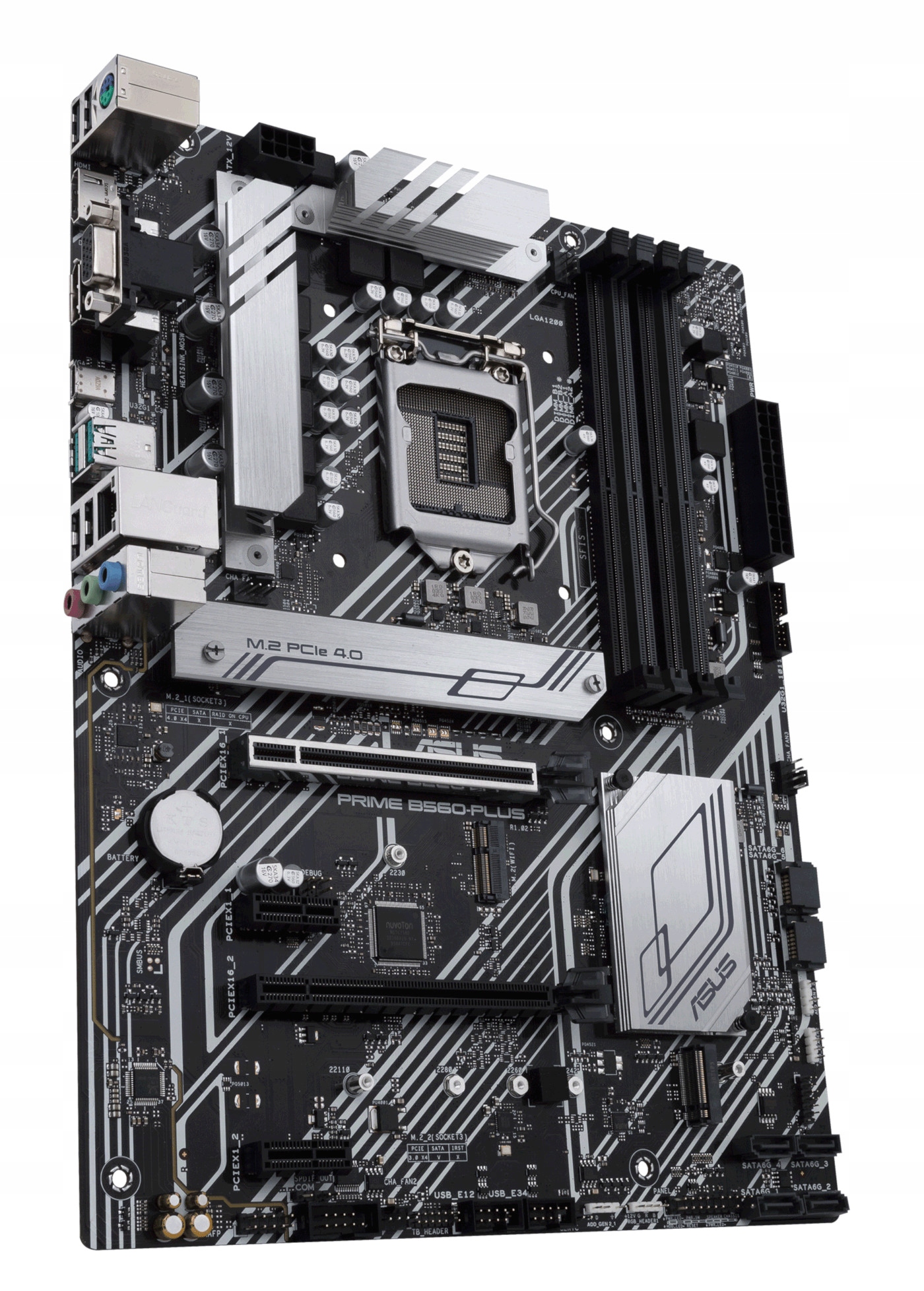

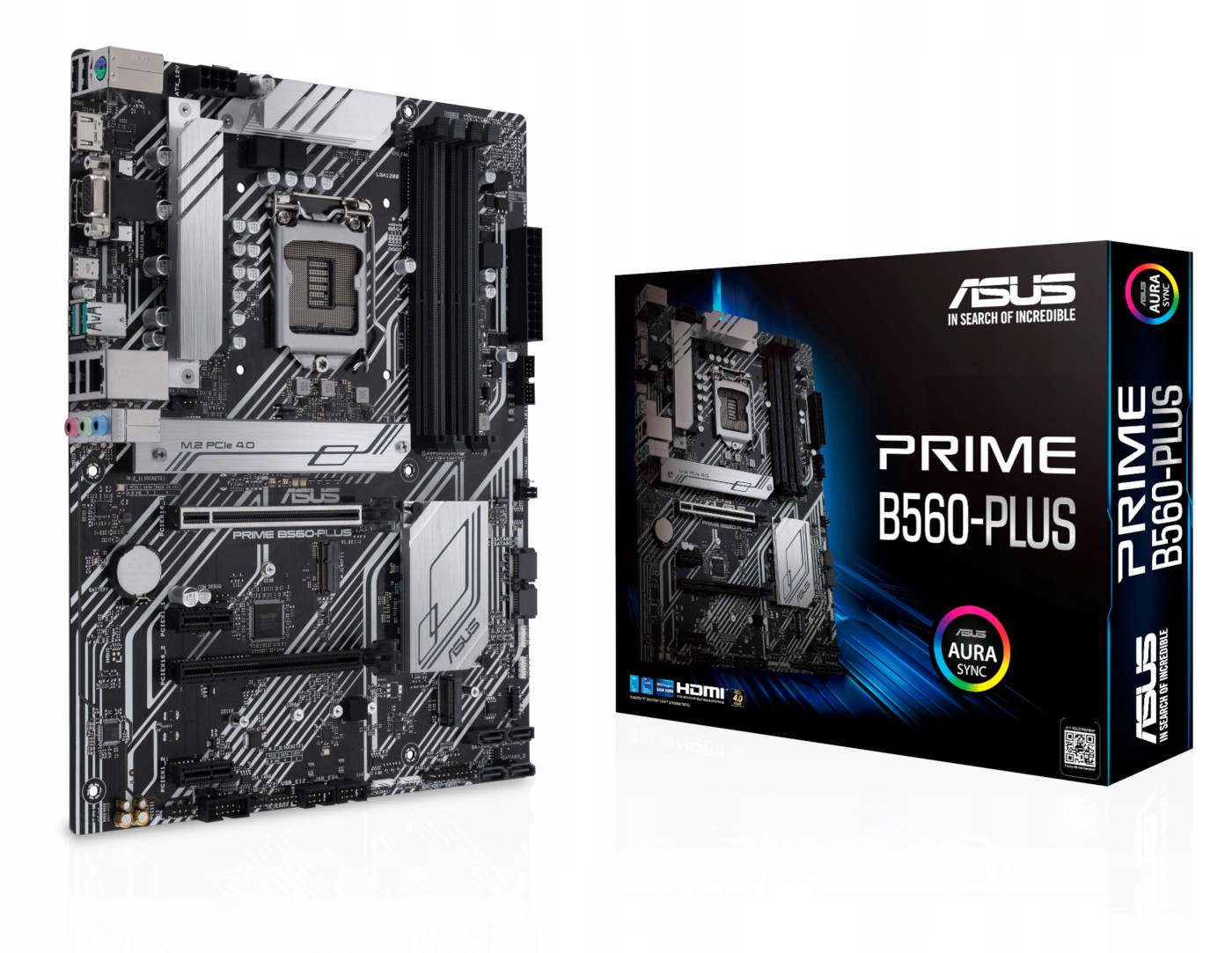

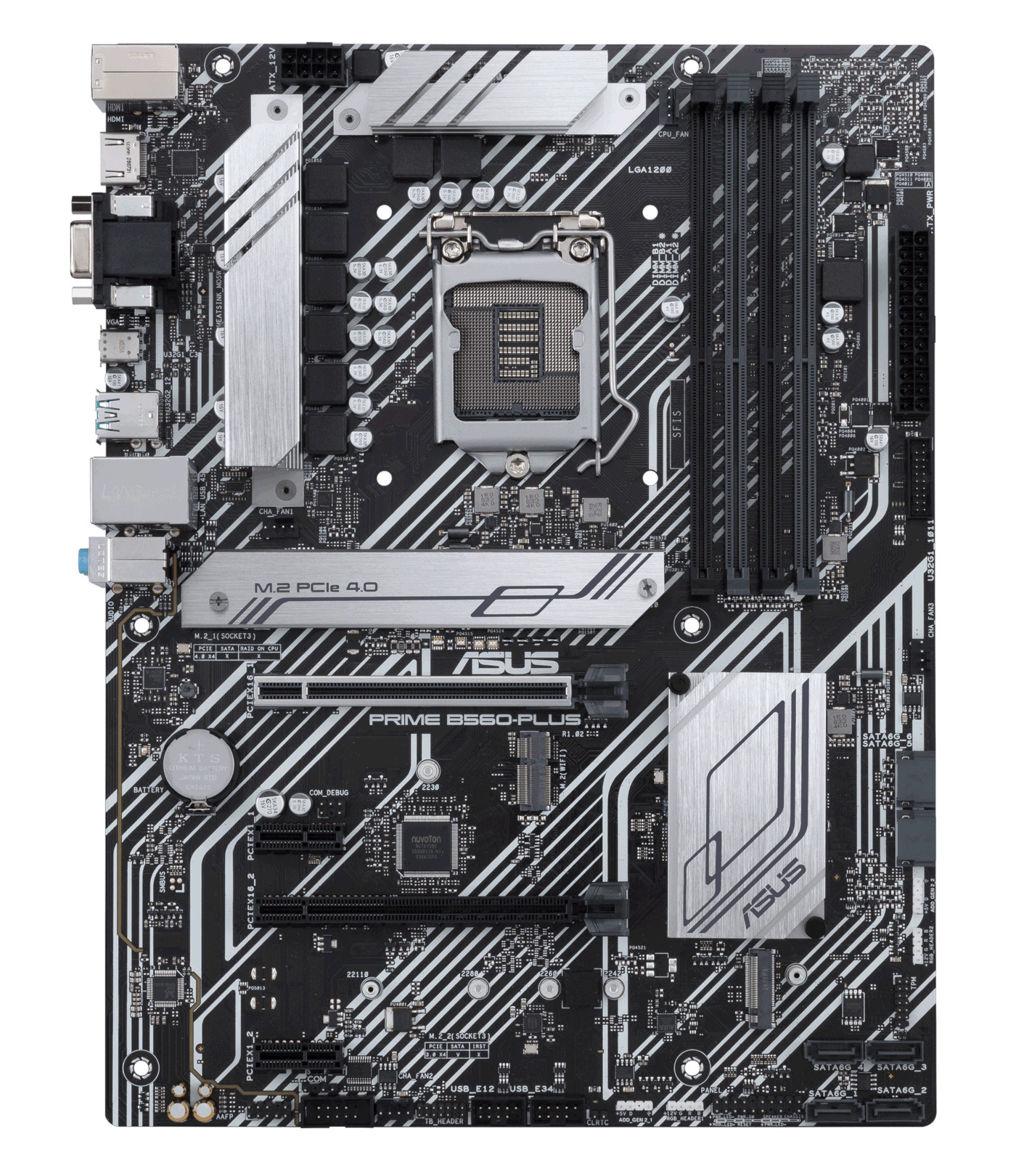

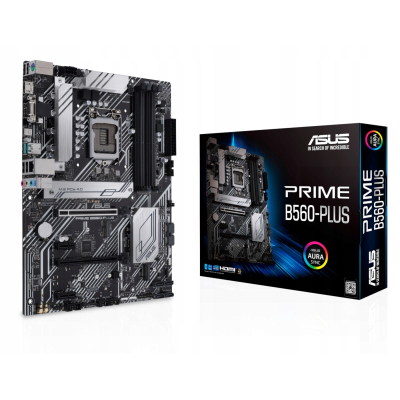

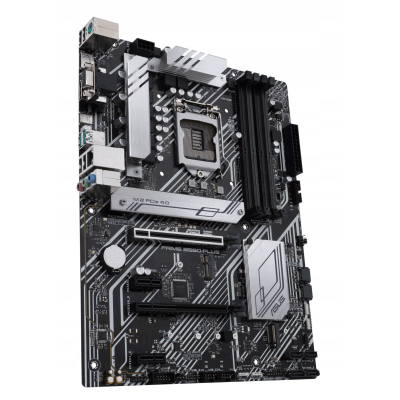

Płyta główna ASUS PRIME B560-PLUS

GALERIA

SPECYFIKACJA

Procesor

• Supports Intel® 14nm CPU
• Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0*
• * Refer to ASUS for CPU support list.
• ** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.

Chipset

• Intel® B560

Pamięć

• Memory Channels:4DDR4 (Dual channel)
• 4600(OC)/4400(OC)/4266(OC)/4000(OC)/3733(OC)/3600(OC)/3466(OC)/3333(OC)/3200(OC)/2933/2800/2666/2400/2133 MHz Non-ECC, Un-buffered memory*
• Dual channel memory architecture
• Supports Intel® Extreme Memory Profile (XMP)
• ASUS OptiMem
• * 11th Gen Intel® processors support 2933/2800/2666/2400/2133 natively.
• * 10th Gen Intel® Core™ i7/i9 processors support 2933/2800/2666/2400/2133 MHz natively, others will run at the maximum transfer rate of DDR4 2666MHz.
• Refer to ASUS for the Memory QVL (Qualified Vendors Lists), and memory frequency support depends on the CPU types.

Grafika

• 1 x DisplayPort 1.4
• 1 x D-Sub
• 1 x HDMI 1.4
• *Graphics specifications may vary between CPU types.
• ** For Intel® 11th & 10th processors, support DisplayPort 1.4 with max. resolution of 4096 x 2304 @60Hz. Please refer to INTEL for any update.
• ***Only Intel® 11th processors support HDMI™ 2.0 with max. resolution of 4K@60Hz, others will only support HDMI™ 1.4 with max. resolution of 4K@30Hz. Please refer to INTEL for any updates.

Gniazda rozszerzeń

• 1 x PCIe 4.0/3.0 x16 + 1 x PCIe 3.0 x16 (max. x4)
• Intel® 11th &10th Gen Processors
• 1 x PCIe 4.0/3.0 x16 slot*
• - Intel® 11th processors support PCIe 4.0 x16
• - Intel®10th processors support PCIe 3.0 x16
• Intel® B560 Chipset
• 1 x PCIe 3.0 x16 slot (supports x4 mode)*
• 2 x PCIe 3.0 x1 slots
• *Enable RST PCIe Storage Remapping for PCH attached PCIe slots to activate Intel® Optane Memory.

Magazyn danych

• Supports 2 x M.2 slots and 6 x SATA 6Gb/s ports
• Intel® 11th Gen Processors
• - M.2_1 slot (Key M) type 2242/2260/2280/22110 (supports PCIE 4.0 x 4 )
• - Only Intel® 11th processors support PCIe 4.0 x4 mode, this slot will be disabled for other CPUs
• Intel® B560 Chipset
• - M.2_2 slot (Key M) type 2242/2260/2280/22110 (supports PCIE 3.0 x 4 & SATA mode modes)
• - 6 x SATA 6Gb/s ports
• When a device in SATA mode is installed on the M.2_2 socket, SATA6G_2 port cannot be used.

Sieć LAN

• ASUS LANGuard

Dźwięk

• Realtek ALC897 7.1-Channel High Definition Audio CODEC*
• Jack-detection, Multi-streaming, Front Panel Jack-retasking
• - Supports up to 24-Bit/192kHz playback
• Audio Features
• - Audio Shielding
• - Premium Japanese audio capacitors
• - Dedicated audio PCB layers
• *A chassis with an HD audio module in the front panel is required to support 7.1-channel audio output

Porty USB

• Rear USB: Total 7 ports
• 2 x USB 3.2 Gen 2 ports (2 x Type-A)
• 1 x USB 3.2 Gen 1 port (1 x USB Type-C®)
• 4 x USB 2.0 ports
• Front USB: Total 6 ports
• 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
• 2 x USB 2.0 headers support additional 4 USB 2.0 ports

Funkcje specjalne

• ASUS 5X PROTECTION III
• - ASUS DIGI+VRM
• - ASUS LANGuard
• - ASUS Overvoltage Protection
• - ASUS SafeSlot Core+
• - ASUS Stainless-Steel Back I/O
• ASUS Q-Design:
• - ASUS Q-DIMM
• - ASUS Q-Slot
• ASUS Thermal Solution
• - Flexible M.2 heatsink
• - VRM heatsink design
• ASUS EZ DIY
• - Box Headers
• AURA SYNC
• - AURA RGB headers
• - Addressable Gen 2 RGB headers
• ASUS Exclusive Software:
• Armoury Crate
• - AURA Creator
• -AURA Sync
• AI Suite 3
• -Performance And Power Saving Utility
• Turbo EVO
• Digi+ VRM
• EPU
• Fan Xpert 2+
• - EZ update
• ASUS CPU-Z
• DAEMON Tools
• Norton Anti-virus software(Free Trial for 60 days)
• WinRAR
• UEFI BIOS
• ASUS EZ DIY
• - ASUS CrashFree BIOS 3
• - ASUS EZ Flash 3
• - ASUS UEFI BIOS EZ Mode

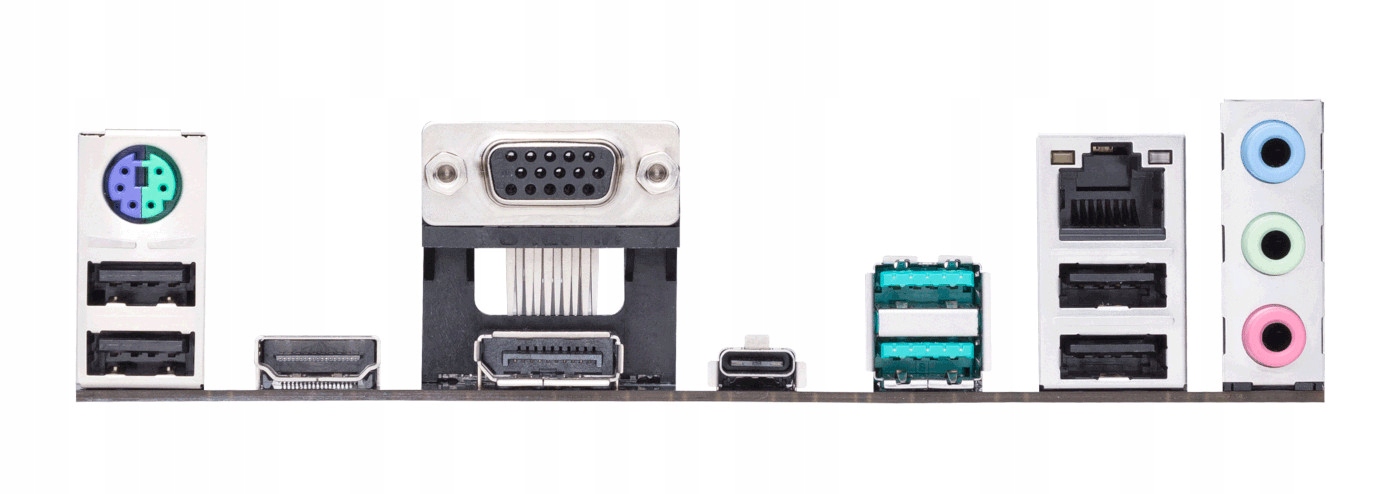

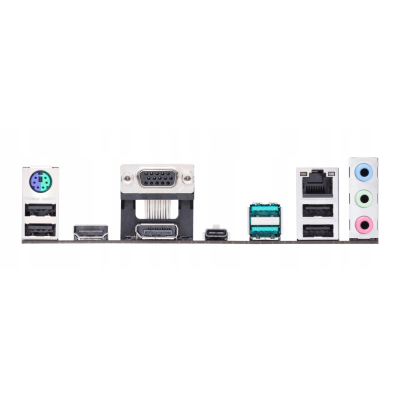

Tylne porty wejścia/wyjścia

• 1 x DP port
• 1 x HDMI port
• 1 x D-Sub port
• 3 x Audio jacks
• 1 x PS/2 Keyboard/Mouse combo port
• 1 x Intel® I219-V 1Gb Ethernet port
• 4 x USB 2.0 ports (4 x Type-A)
• 2 x USB 3.2 Gen 2 ports (2 x Type-A)
• 1x USB 3.2 Gen 1 port (1 x USB Type-C®)

Wewnętrzne porty wejścia/wyjścia

• Fan and cooling-related
• 1 x 4-pin CPU Fan header
• 3 x 4-pin Chassis Fan headers
• Power related
• 1 x 24-pin Main Power connector
• 1 x 8-pin +12V Power connector
• Storage related
• 2 x M.2 slots (Key M)
• 6 x SATA 6Gb/s ports
• USB
• 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
• 2 x USB 2.0 headers support additional 4 USB 2.0 ports
• Miscellaneous
• 2 x AURA Addressable Gen 2 headers
• 2 x AURA RGB headers
• 1 x Clear CMOS jumper
• 1 x COM Port header
• 1 x Front Panel Audio header (AAFP)
• 1 x S/PDIF out header
• 1 x 20-3pin System Panel header with Chassis intrude function
• 1 x SPI TPM header (14-1 pin)
• 1 x M.2 slot (key E)
• 1 x Thunderbolt 4 header

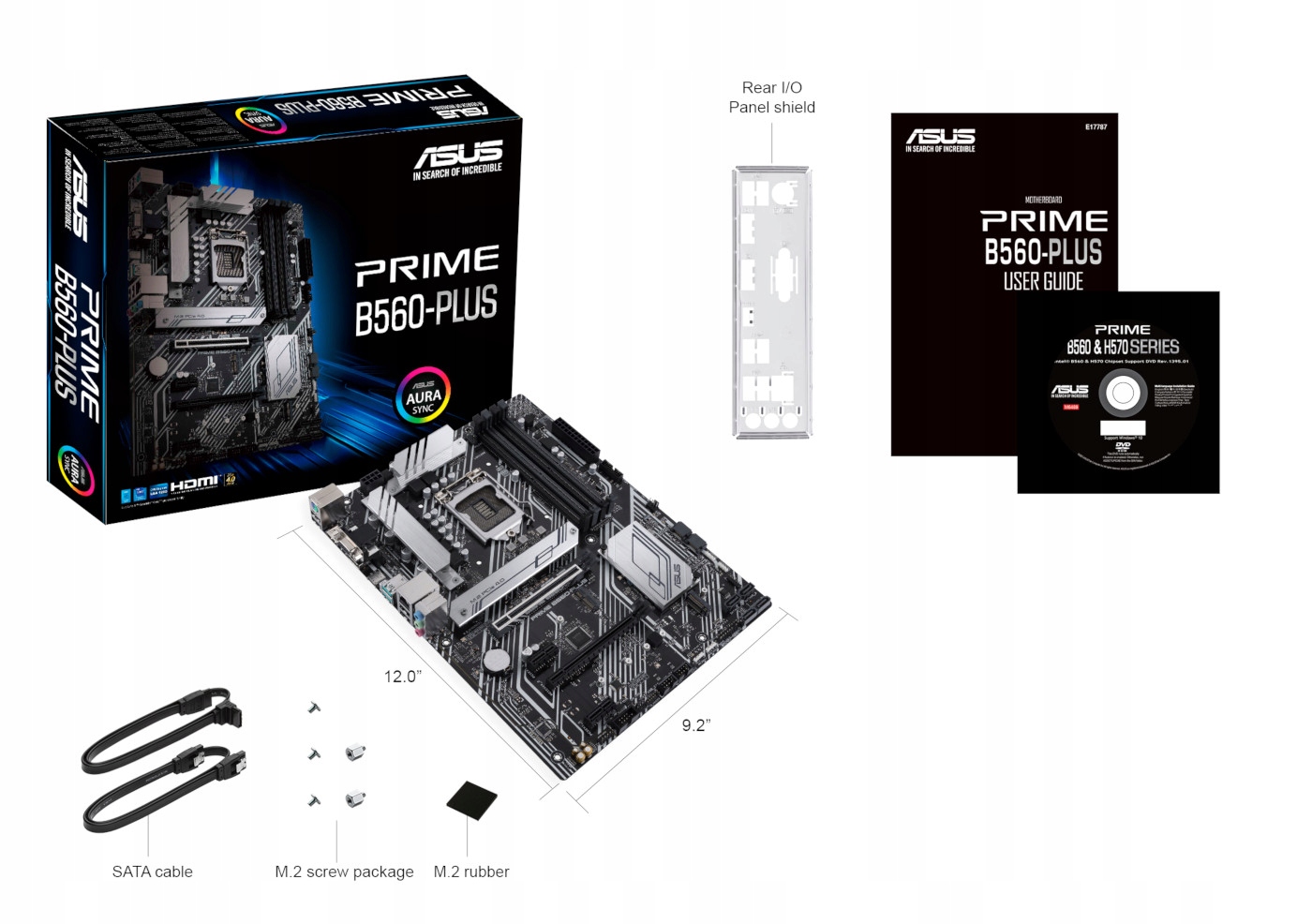

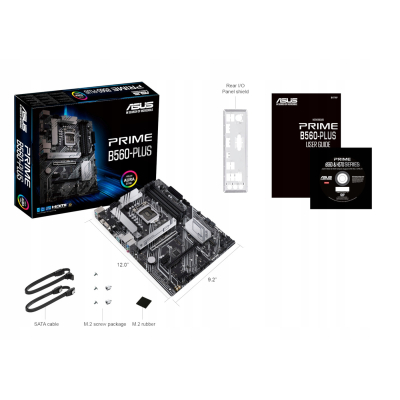

Akcesoria

• Cables
• 2 x SATA 6Gb/s cables
• Miscellaneous
• 1 x M.2 Rubber Package
• 1 x IO Shield
• 1 x M.2 SSD screw package
• 1 x M.2 Key E screw package
• Installation Media
• 1 x Supporting DVD
• Documentation
• 1 x User's manual

BIOS

• 128 Mb Flash ROM, UEFI AMI BIOS

System operacyjny

• Wymagany Windows® 10 64-bit

Typ obudowy

• ATX
• 30.5cm x 23.4cm
