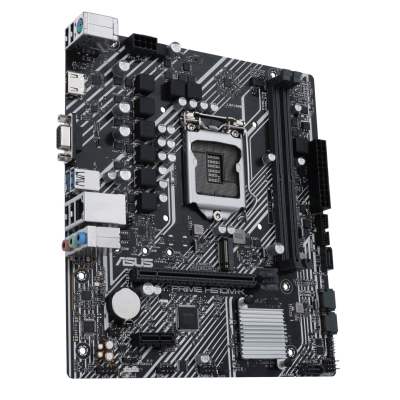

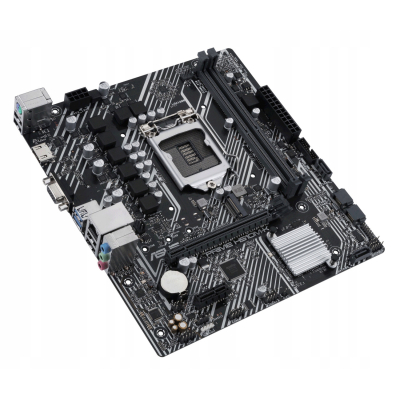

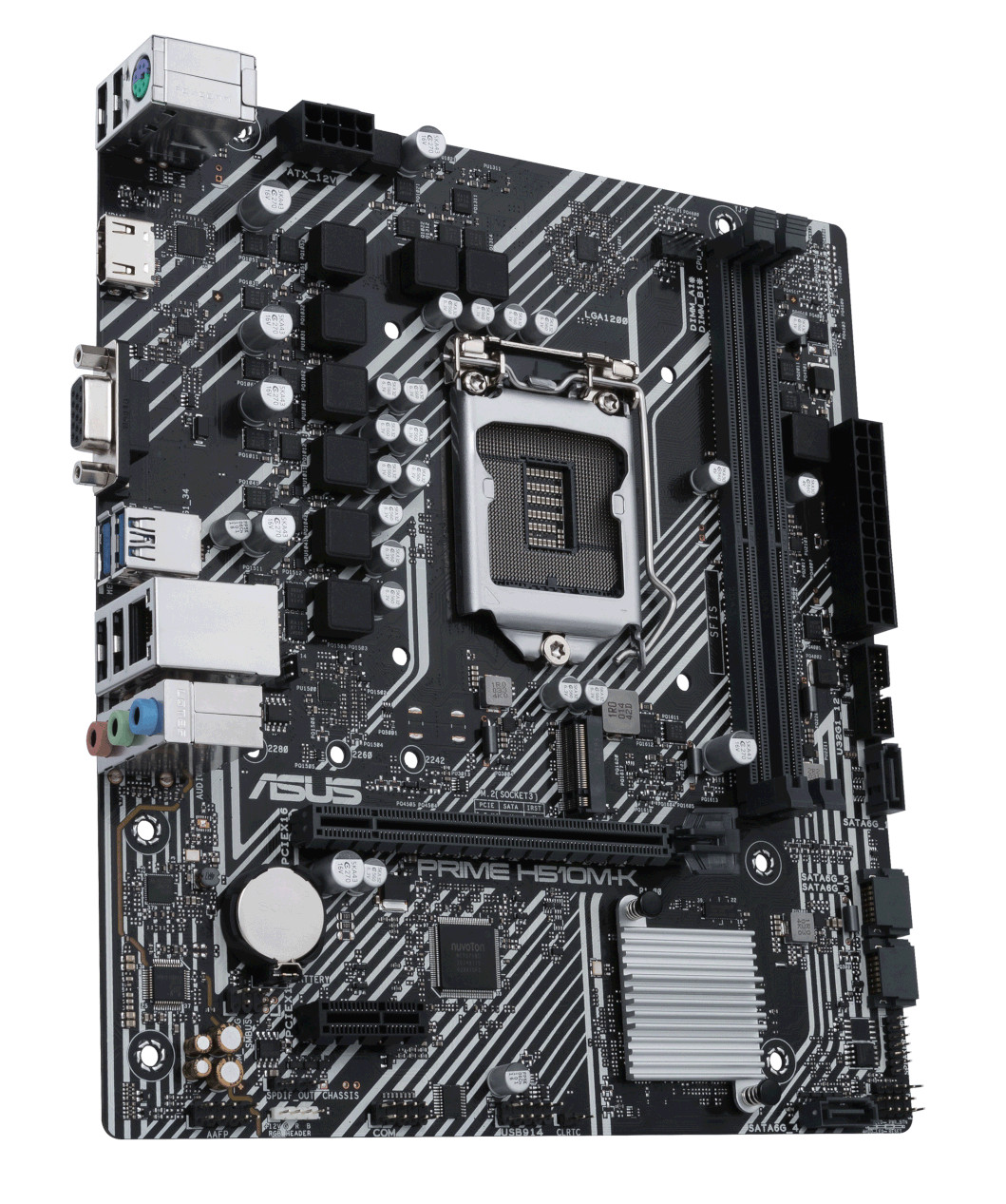

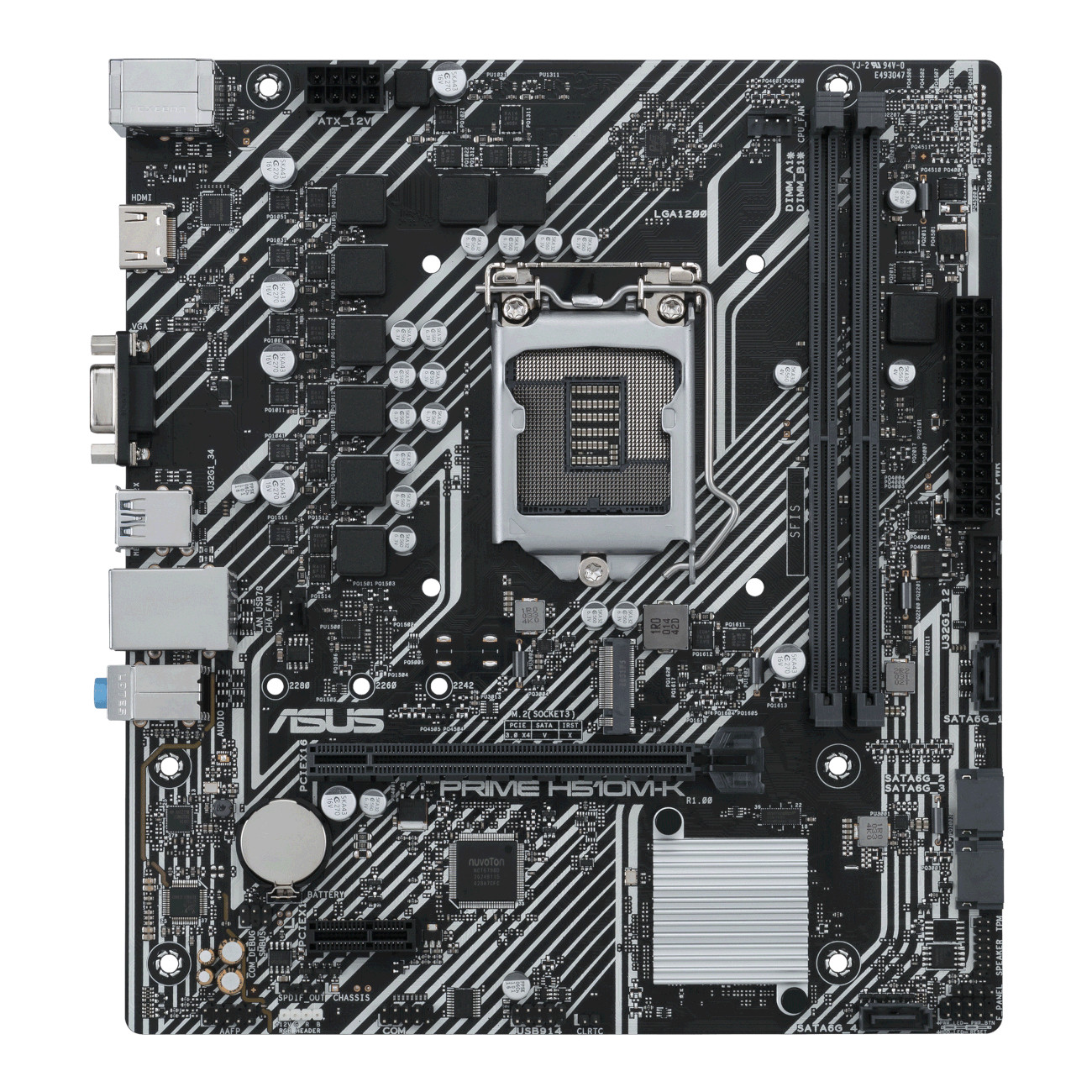

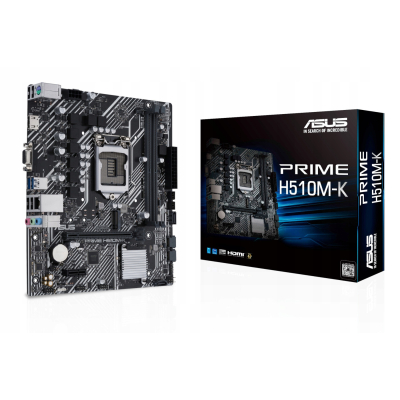

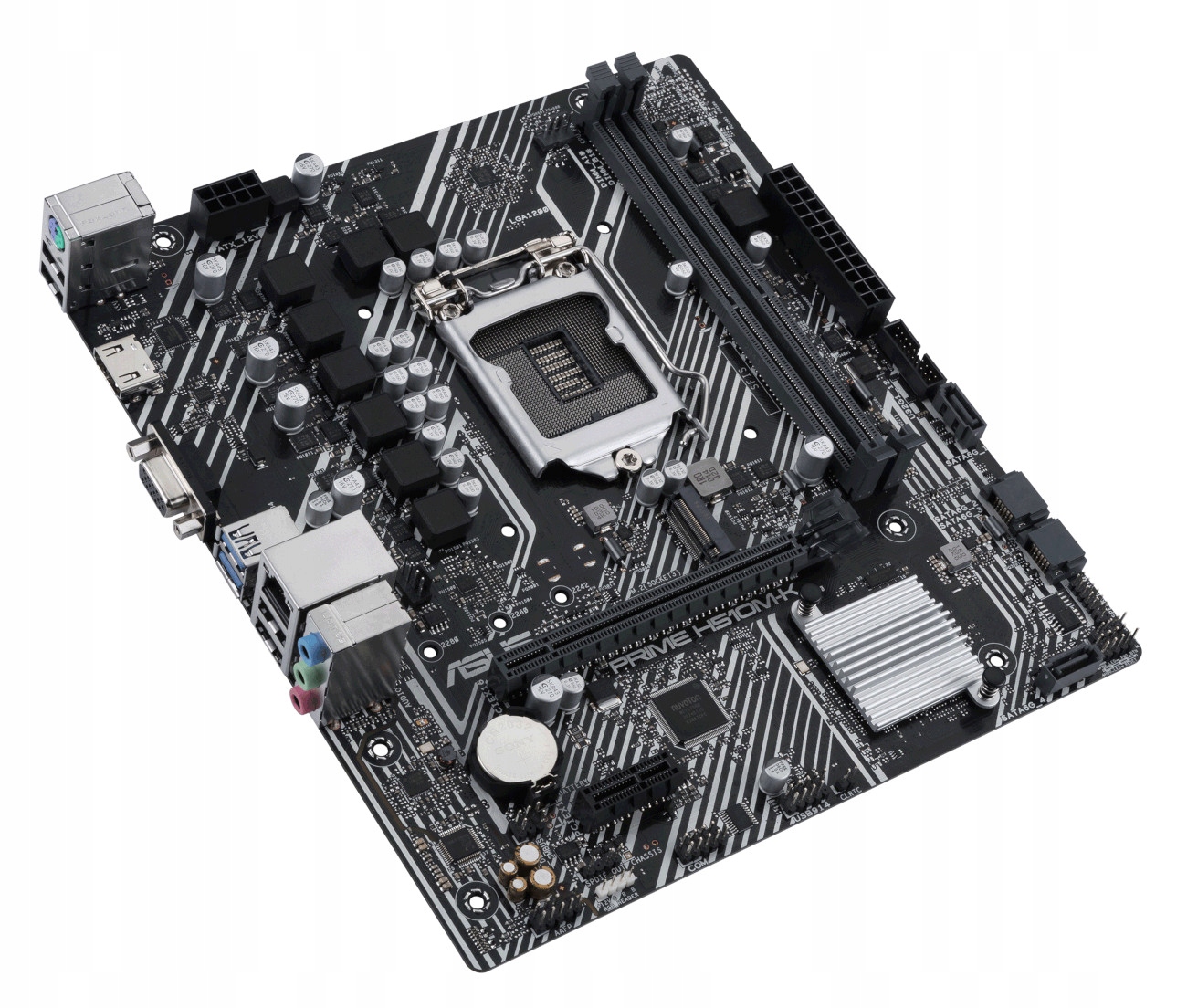

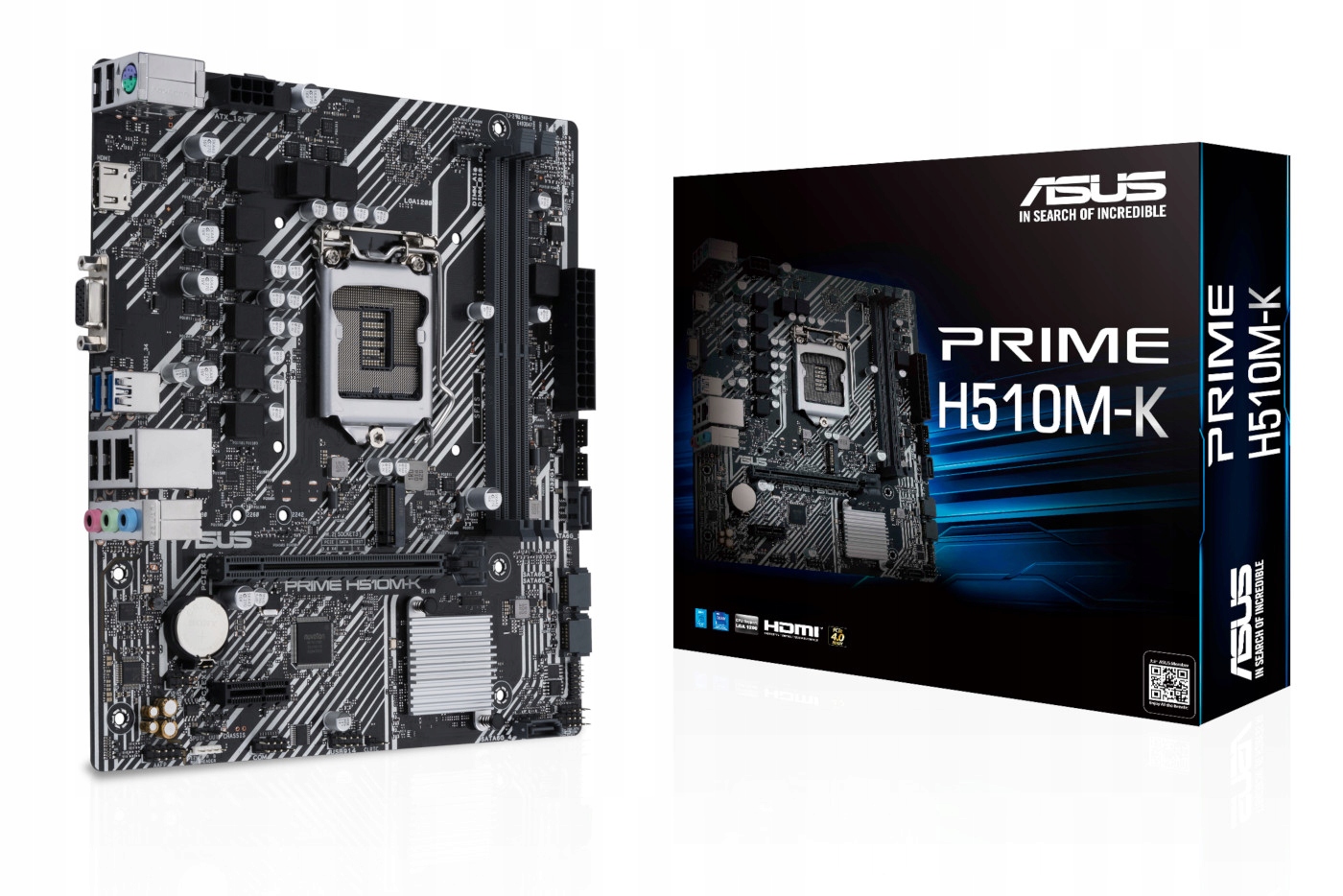

Płyta główna ASUS PRIME H510M-K

GALERIA

SPECYFIKACJA

Procesor

• Intel® Socket LGA1200 for 11th Gen Intel® Core™ Processors & 10th Gen Intel® Core™, Pentium® Gold and Celeron® Processors
• Supports Intel® 14 nm CPU
• Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**
• * Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.

Chipset

• Intel® H510 Chipset

Pamięć

• DDR4 3200(OC)/2933/2800/2666/2400/2133 MHz Non-ECC, Un-buffered Memory*
• Dual Channel Memory Architecture
• Supports Intel® Extreme Memory Profile (XMP)
• * 10th Gen Intel® Core™ i7/i9 processors support 2933/2800/2666/2400/2133 natively, others will run at the maximum transfer rate of DDR4 2666MHz.
• * 11th Gen Intel® processors support 2933/2800/2666/2400/2133 natively.
• * Refer to ASUS for the Memory QVL (Qualified Vendors Lists), and memory frequency support depends on the CPU types.

Grafika

• 1 x D-Sub
• 1 x HDMI 2.0™ 2.0**
• * Graphics specifications may vary between CPU types.
• ** Only Intel® 11th Gen processors support HDMI™ 2.0 with max. resolution of 4K@60Hz, others will only support HDMI™ 1.4 with max. resolution of 4K@30Hz. Please refer to INTEL for any updates.

Gniazda rozszerzeń

• Intel® 11th & 10th Gen Processors
• 1 x PCIe 4.0/3.0 x16 slot
• - Intel® 11th Gen processors support PCIe 4.0 x16
• - Intel® 10th Gen processors support PCIe 3.0 x16
• Intel® H510 Chipset
• 1 x PCIe 3.0 x1 slot

Magazyn danych

• Supports 1 x M.2 slot and 4 x SATA 6Gb/s ports
• Intel® H510 Chipset
• M.2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 & SATA modes)
• 4 x SATA 6Gb/s ports
• * The M.2 slot shares bandwidth with the SATA6G_2 port. When a device in SATA mode is installed on the M.2 slot, the SATA6G_2 port cannot be used.

Sieć LAN

• ASUS LANGuard

Dźwięk

• ALC887/897
• Realtek ALC897/887 7.1 Surround Sound High Definition Audio CODEC*
• - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
• - Supports up to 24-Bit/192 kHz playback"
• Audio Features
• - Audio Shielding
• - Dedicated audio PCB layers
• * A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.

Porty USB

• Rear USB:Total 6 ports
• 2 x USB 3.2 Gen 1 ports (2 x Type-A)
• 4 x USB 2.0 ports (4 x Type-A)
• Front USB:Total 4 ports
• 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
• 1 x USB 2.0 header supports additional 2 USB 2.0 ports

Funkcje specjalne

• ASUS 5X PROTECTION III
• - DIGI+ VRM
• - LANGuard
• - Overvoltage Protection
• - SafeSlot Core
• - Stainless-Steel Back I/O
• ASUS Q-Design
• - Q-DIMM
• - Q-Slot
• ASUS Thermal Solution
• - Aluminum heatsink design
• ASUS Lighting Control
• - RGB header
• ASUS Exclusive Software
• Armoury Crate
• AI Suite 3
• - Performance And Power Saving Utility
• TurboV EVO
• EPU
• DIGI+ VRM
• Fan Xpert
• - EZ update
• ASUS CPU-Z
• AI Charger
• DAEMON Tools
• Norton Anti-virus software (Free Trial version)
• WinRAR
• UEFI BIOS
• ASUS EZ DIY
• - ASUS CrashFree BIOS 3
• - ASUS EZ Flash 3
• - ASUS UEFI BIOS EZ Mode

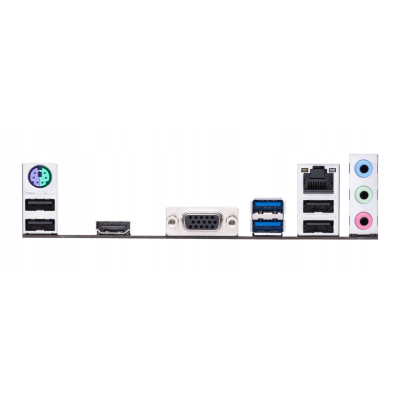

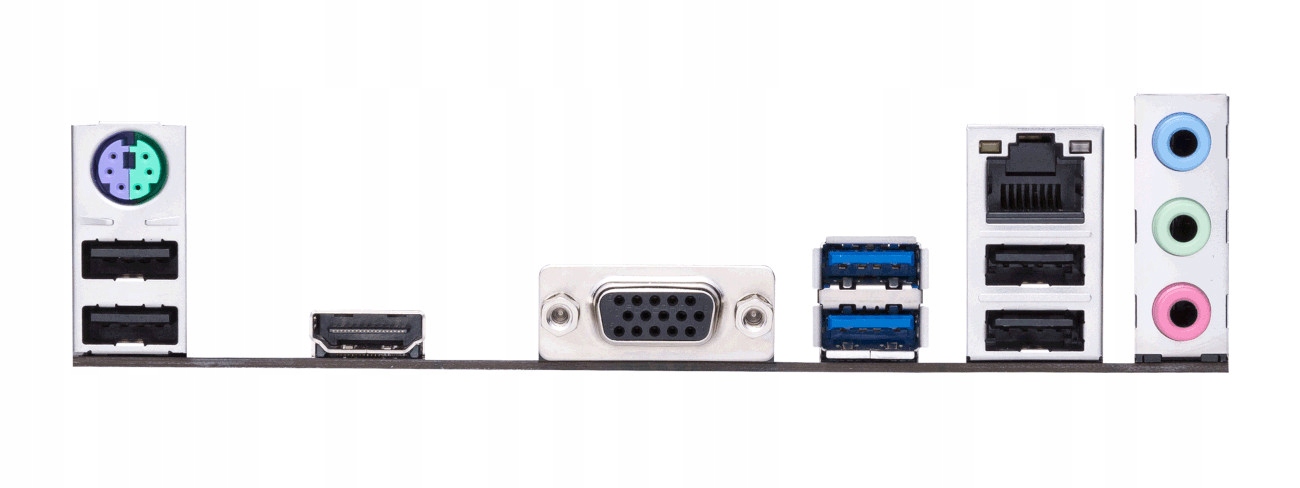

Tylne porty wejścia/wyjścia

• 2 x USB 3.2 Gen 1 ports (2 x Type-A)
• 4 x USB 2.0 ports (4 x Type-A)
• 1 x D-Sub port
• 1 x HDMI™ port
• 1 x Intel® I219-V 1Gb Ethernet port
• 3 x Audio jacks
• 1 x PS/2 Keyboard/Mouse combo port

Wewnętrzne porty wejścia/wyjścia

• Fan and Cooling related
• 1 x 4-pin CPU Fan header
• 1 x 4-pin Chassis Fan header
• Power related
• 1 x 24-pin Main Power connector
• 1 x 8-pin +12V Power connector
• Storage related
• 1 x M.2 slot (Key M)
• 4 x SATA 6Gb/s ports
• USB
• 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
• 1 x USB 2.0 header supports additional 2 USB 2.0 ports
• Miscellaneous
• 1 x RGB header
• 1 x Clear CMOS header
• 1 x COM Port header
• 1 x Front Panel Audio header (AAFP)
• 1 x S/PDIF Out header
• 1 x Speaker header
• 1 x SPI TPM header (14-1pin)
• 1 x 10-1 pin System Panel header

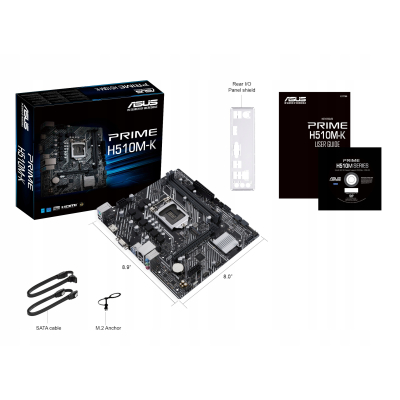

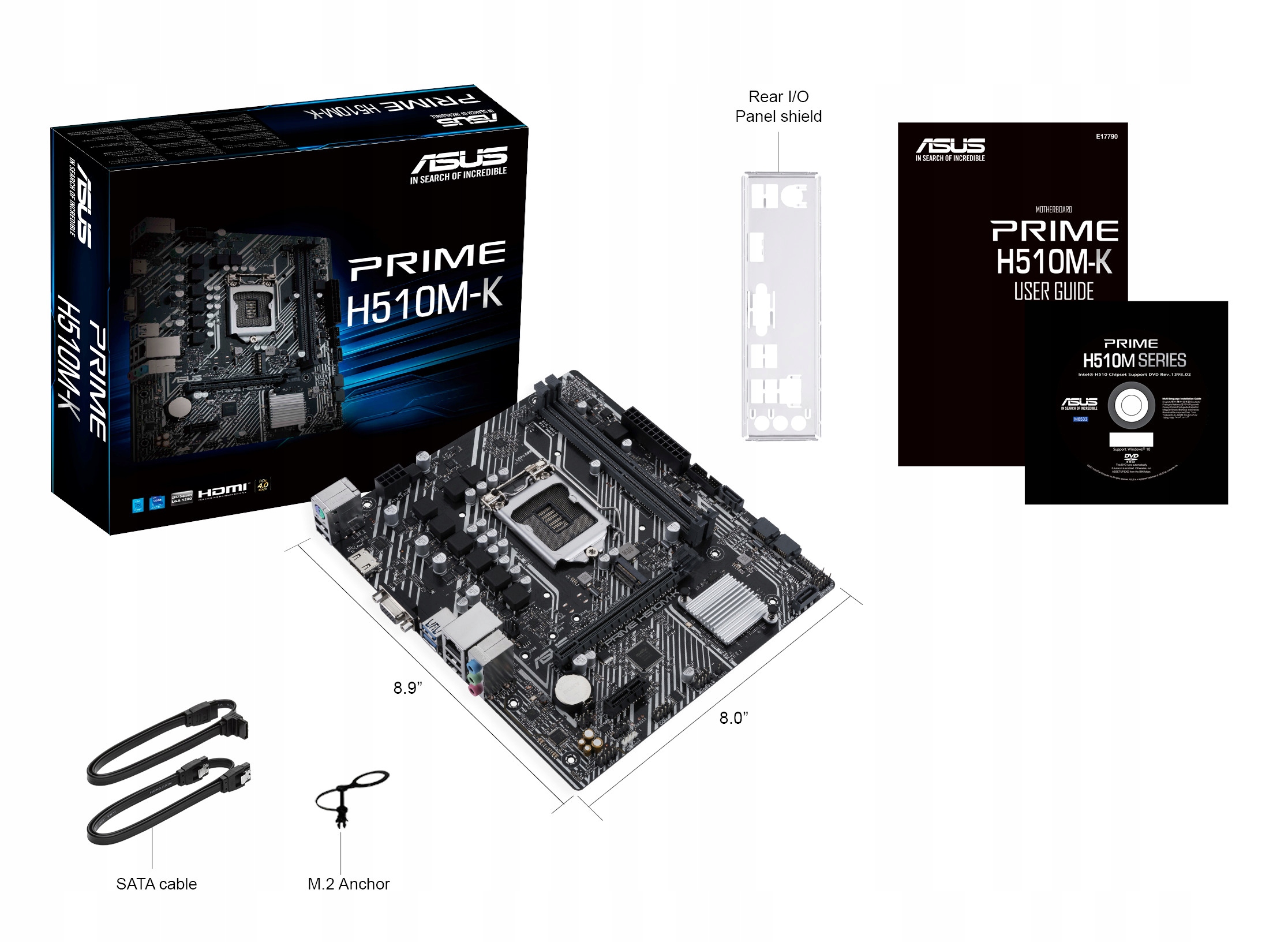

Akcesoria

• Cables
• 2 x SATA 6Gb/s cables
• Miscellaneous
• 1 x I/O Shield
• 1 x M.2 ANCHOR
• Installation Media
• 1 x Support DVD
• Documentation
• 1 x User manual

BIOS

• 128 Mb Flash ROM, UEFI AMI BIOS

System operacyjny

• Wymagany Windows® 10 64-bit

Typ obudowy

• mATX Form Factor
• 22.6cm x 20.3cm
